In the manufacturing landscape, choosing between CNC routing and traditional machining is crucial for optimising efficiency and quality. Traditional machining relies on manual tools like grinders and lathes, requiring skilled operators and longer production times. In contrast, CNC routing uses computer-controlled precision to achieve accurate cuts swiftly, reducing costs and material waste.

This article compares CNC routing and traditional machining across key metrics like costs, efficiency, accuracy, and flexibility. By analysing these factors, manufacturers can make informed decisions to enhance productivity and meet project demands effectively.

Costs

CNC router is a subtractive manufacturing device that uses a rotary cutting tool to create precise cuts in wood, composites, soft metals, and plastics. The process is computer-controlled, ensuring high precision and accuracy. It also reduces operational costs and increases productivity. Traditional machining methods, on the other hand, are time-intensive and require a high level of skill to achieve desired results. This can lead to inconsistencies in the final product, which can cost a business time and money.

In addition, traditional machining methods tend to produce a higher volume of waste material than CNC processes. The extra material can be costly, especially if the waste is large. However, with CNC routing services, the machine only cuts what it needs to, which reduces waste and saves time and money.

One of the biggest benefits of CNC machining is its ability to create consistent parts and components in terms of shape, size, and quality. This feature can be critical in industries like the medical industry, where any deviation from set standards could have serious consequences. A CNC machine can perform rigorous inspections and tests to ensure that the final product meets its intended specifications, using a range of measurement tools and visual inspection. This process is known as quality control, and it involves checking that the dimensions, tolerances, and shapes created by the machine match those in the design programmed into the CNC machine.

READ  Benefits of Epoxy Garage Floors: Durability and Easy Maintenance

Time

As an automated process, CNC routing cuts production time drastically when compared to manual machining techniques. Moreover, the machine can also produce high-quality results with less material waste. This translates into significant cost savings for producers and consumers alike.

In addition to the speed and efficiency of CNC routing, the technology offers unparalleled accuracy. This enables it to cut intricate designs with flawless precision that would be impossible to achieve manually. Consequently, it reduces the need for tedious post-production processes that add to overall production costs.

Traditional machining, on the other hand, relies heavily on operator skill and experience. The inability to control complex machines and shape materials to precision can significantly impact final product quality, especially for complicated shapes and intricate designs.

The CNC router works by using a computer-generated set of instructions known as G-code to move a rotating cutting tool around axes to carve out a design. The router’s spindle is controlled by motors – stepper or servo motors depending on the model – that provide the required rotational speeds.

The first step of the CNC routing process involves sketching and drafting with CAD software. This allows for precise drafting and editing, ensuring that the 2D design is accurate and in line with client specifications. The CAM software then interprets the design and generates toolpaths – the specific routes that the CNC router will follow to cut out the desired shapes and details. These are then loaded into the machine, where they’re used to guide the CNC router through the cutting process.

READ  The Ultimate Guide to Buying Pottery Supplies for Beginners

Accuracy

Accuracy is paramount in manufacturing, particularly for industries like Metal-Tech Industries that demand precision. A CNC machine operates with G-code instructions, guiding a cutting tool across coordinates to realize designs flawlessly. Housed within a gantry, this tool moves in three axes, controlled by CAD-derived data translated into signals for the drive system.

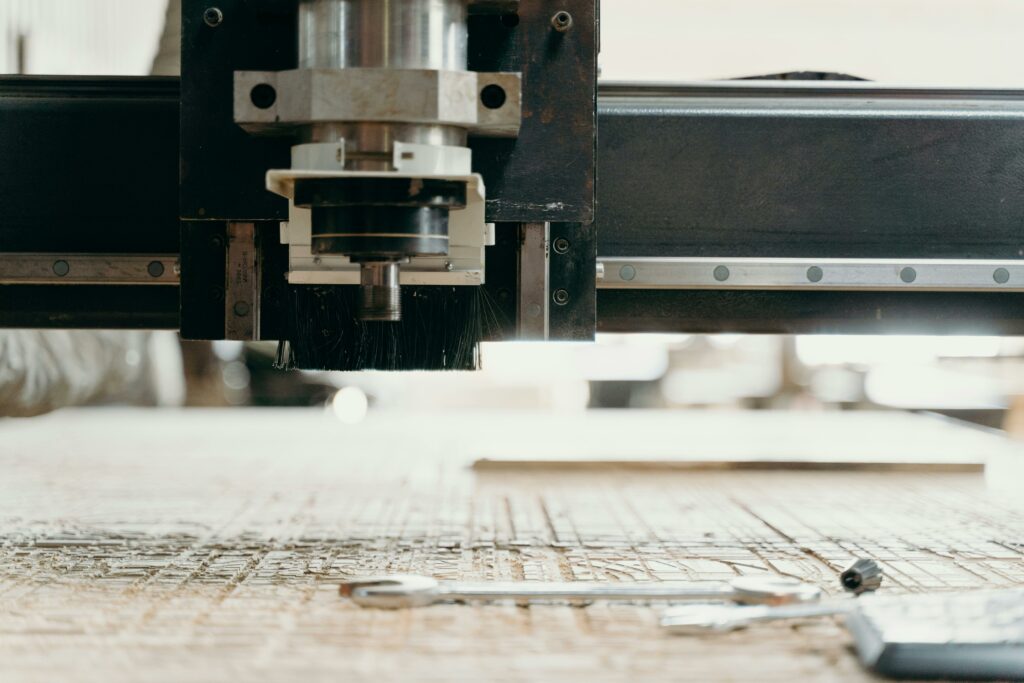

The router, aka the cutting tool, is housed in a gantry that moves across the workpiece in three axes during the process. The gantry is controlled by the controller, which receives data from CAD software and turns it into electrical signals to control the drive system. The drive system, which can be an open-loop or closed-loop system, converts the electrical signals into rotational movement for the gantry and the router to follow.

After the router cuts or carves the material, the final product undergoes post-processing. This can include sanding, painting, and assembly to transform the routed material into a finished product that is ready for its intended purpose.

This stage is essential for maintaining a high level of quality in your fabrication processes. It can involve specialised measuring tools to verify that every cut, hole, and shape meets your specifications, as well as visual inspections to check for cosmetic flaws. Maintaining this high level of accuracy prevents roadblocks in the manufacturing process and frees up more time for production.

Flexibility

CNC Routing is the process of using a computer to control the movement of a power tool in materials like composites, polymers, and soft metals. It offers exceptional flexibility compared to conventional machines which need time-consuming setup changes for different projects. This enables us to respond to client demands and deliver products more quickly and economically.

The process of CNC routing begins with the design stage, which involves crafting intricate digital blueprints for what will eventually materialise from a CNC router. Using CAD software, designers can carefully draft their ideas and create clean and accurate 2D designs. This allows for easy editing and refinement, ensuring that the envisioned project meets client specifications.

READ  Benefits of Epoxy Garage Floors: Durability and Easy Maintenance

Once the design is complete, CAM software interprets it and creates toolpaths, which dictate how the cutting tool should move over the material. This is a crucial step that impacts the quality of the finished product, as it determines how efficient and precise the cutting will be. Careful consideration of toolpath strategies and adherence to best practices is key to achieving the desired results.

Another crucial factor in determining the success of a CNC project is machine setup. This includes ensuring that the material is properly prepared for cutting and that all components are functioning properly. It is also important to keep track of maintenance tasks and record any issues that may arise during the course of a job.

Choosing the Right Path

In conclusion, the choice between CNC routing and traditional machining hinges on balancing precision, efficiency, and cost-effectiveness. CNC routing excels in delivering accurate, consistent results swiftly, ideal for projects requiring intricate designs and fast turnaround times. Traditional machining, while requiring skilled labor and longer production cycles, remains indispensable for certain applications demanding manual expertise.

By understanding the strengths and limitations of each method, manufacturers can strategically leverage CNC routing or traditional machining to optimise their production processes, meet client expectations, and stay competitive in a dynamic industry landscape.
